10 KV High Voltage Grounding Wire Yellow Grounding Rod/Pole, 25 Square Transparent Soft Copper Wire for Substations Residential Areas(B,1.0m)

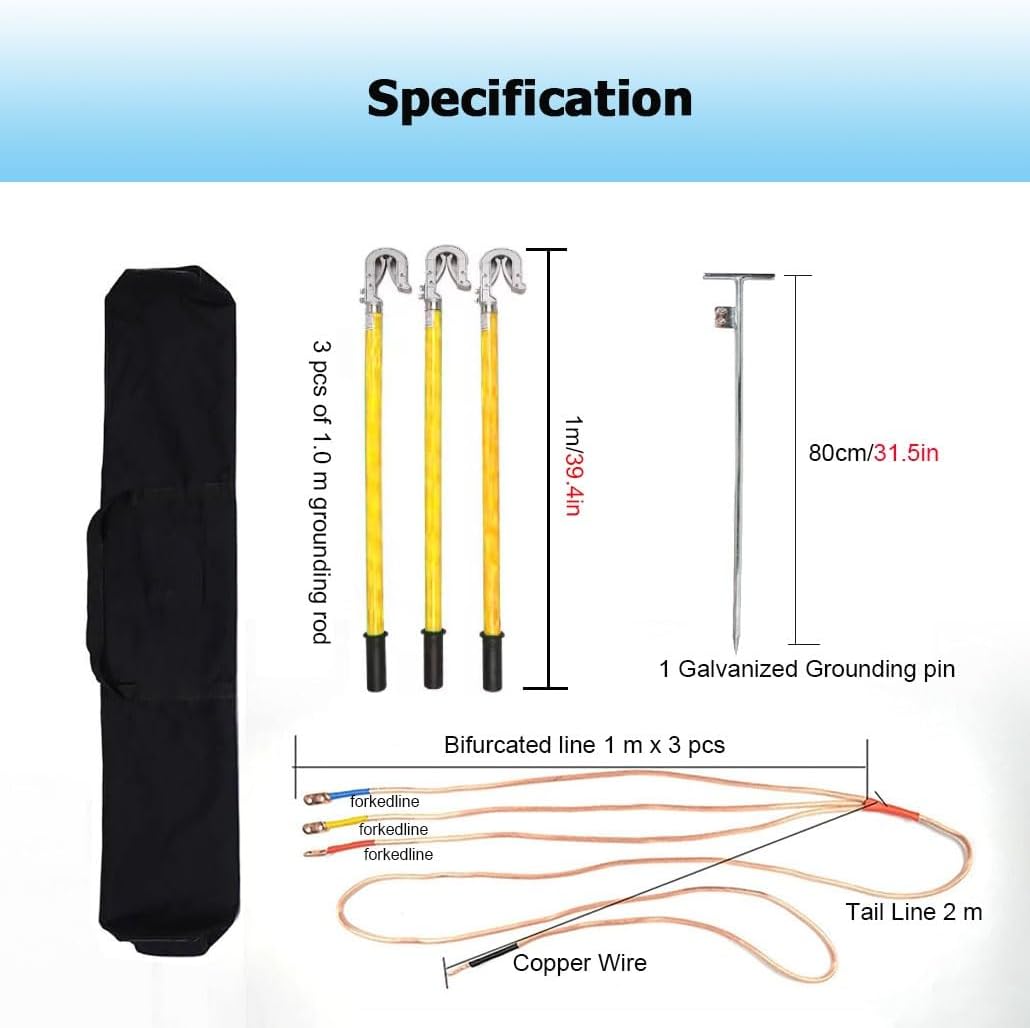

Are you still worried about finding a high-voltage grounding wire?Our indoor high-voltage grounding wire has a 10 Kv bottle-mouth spiral operating head with an insulating rubber handle. It is safe, reliable, and weather-resistant; It can be used in substations, power towers, power stations, circuit maintenance and other fields.Specification：Name: Indoor High Pressure SuitProduct Style: Flat SpiralMaterial: Epoxy Resin Rod + Copper WireGround Rod Size: 0.5 m, 1.0 mColor: YellowWithstand voltage: 10 KVCopper Wire: National standard 25 square metersAccessories: Aluminum clamp with ground jointScope of Use: Substations, power towers, Power stations, circuit maintenanceFeatures:1. The grounding wire rod is made of epoxy resin, which has strong insulation2. The grounding rod has an insulated non-slip handle, which is comfortable to operate, prevents electric shock, & provides safety protectionPackage include:0.5 m/1.0 m Flat Steel x 3Ground Clip/Pin x 1Fork line 1m x 3 + Tail line 2 m Notes:1. Due to manual measurement, there may be a 1-2 cm error, please understand2. Due to different monitors, there may be color differences, please refer to the actual product

• Composition of Grounding Wires: The material of the operating rod is glass fiber reinforced plastic epoxy resin plastic；There are 3 wires for each group of indoor high & low voltage and 3 wires for outdoor high voltage; The leverage is also different for each voltage class
• Epoxy Resin Pole: Epoxy resin material, strong insulation, high safety
• Indoor Use: When used indoors, the power supply equipment is grounded, the terminal clamp adopts flat screw type, and the grounding method adopts ground connection
• Outdoor use: The outdoor circuit adopts double spring type, and the grounding nail adopts the grounding nail
• Precautions: The grounding wire is the grounding end first, and then the conductor end; The grounding wire must be in good contact and reliable; The order of removing the grounding wire should be reversed; Use insulating gloves & insulating rods when installing or removing the grounding wire
