EZ PATH (EZDP33FWS) SERIES 33 UP TO 4 HOURS FIRE RATING PATHWAY DEVICE WITH SQUARE WALL PLATE KIT 3in x 3in (76mm) SQUARE OPENING

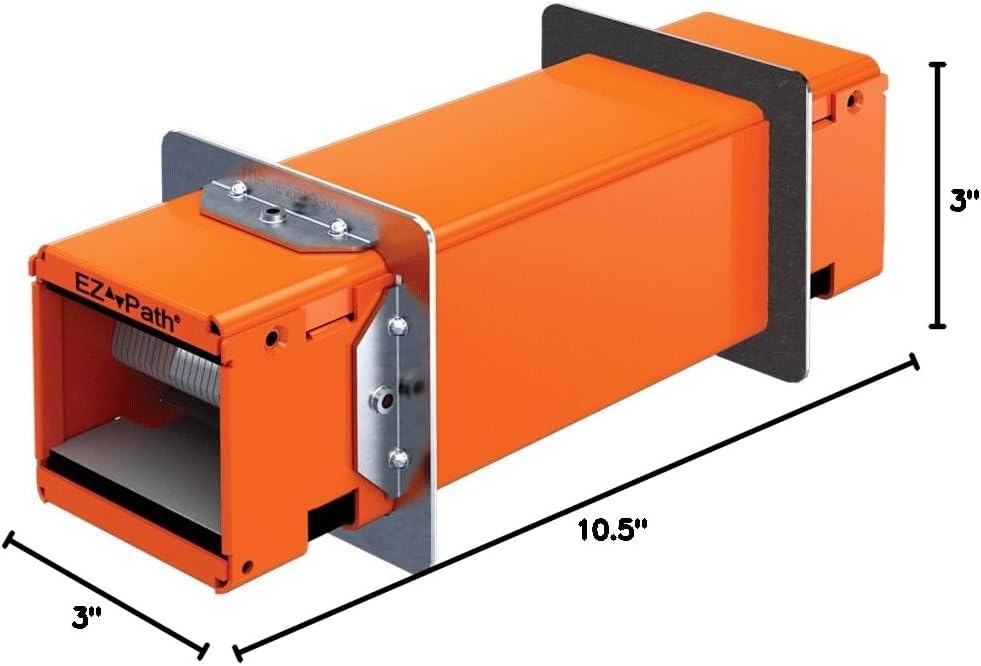

EZ PATH (EZDP33FWS) SERIES 33 UP TO 4 HOURS FIRE RATING PATHWAY DEVICE WITH SQUARE WALL PLATE KIT 3in x 3in (76mm) SQUARE OPENINGThe EZ-Path Series 33 Fire-Rated Pathway is a pathway device designed to allow cables to penetrate fire-rated walls without the need for firestopping. This device features a built-in fire sealing system that automatically adjusts to the amount of cables installed. Once installed in a fire barrier, cables can be easily added or removed at any time without the need to remove or reinstall firestopping materials.The EZ-Path Series 33 Fire-Rated Pathway consists of an enclosed heavy gauge galvanized steel pathway lined with intumescent material engineered for rapid expansion when exposed to fire or high temperatures, quickly sealing the pathway and preventing the passage of flames and smoke.The EZ-Path Series 33 Fire-Rated Pathway is painted safety orange for easy identification. Its compact square profile allows a maximum number of cables to be installed in a relatively small area. The pathway measures approximately 3" x 3" and is 10.5" (76 x 76 x 267 mm) long.No maintenance of the pathway is normally required.Please contact HELP DESK for more information

• Easy to install. No firestopping required. Self Sealing design providing exceptional F&L Ratings. UL Tested for low leakage and UL classified for the complete range of its capacity.
• Designed for New and Existing conditions. Pathways can be ganged for additional capacity. Permits cable segregation by use, type, vendor. Match the capacity of a 4" (102mm) conduit.
• EZ-Path is UL Tested and Classified with accordance with ASTM E814 (UL1479) & CAN/ULC-S115. Systems are available for common floor and wall constructions with ratings up to and including 4 hours.
• Maintenance-free pathway solution for moderate cable volumes through fire-rated walls and floors.
• When exposed to flame and high temperatures, the intumescent pads expand to form a dense insulative char that prevents the passage of smoke and flame.
